What Are the Most Important Jaw Crusher Parts You Should Know?

I understand a jaw crusher serves as a primary crushing machine, reducing large rocks into smaller sizes. The critical jaw crusher parts include the frame, fixed jaw die, movable jaw die, eccentric shaft, toggle plates, and flywheel. This market is substantial; experts project the global jaw crushers market size to reach USD 3.3 Billion by 2035. Proper knowledge of these parts is vital for maintaining a crusher's typical 5 to 15-year lifespan.

Key Takeaways

• A jaw crusher breaks large rocks into smaller ones. Its main parts are the frame, jaw dies, eccentric shaft, toggle plates, and flywheel. Knowing these parts helps keep the machine working well.
• The crusher frame holds everything together. The fixed and movable jaw dies crush rocks. The eccentric shaft makes the movable jaw move. Toggle plates protect the machine. The flywheel keeps the crushing smooth.
• Regular checks and good lubrication are very important. They help prevent parts from wearing out too fast. This makes the crusher last longer and work better.

Essential Jaw Crusher Parts and Their Functions

I will now delve into some of the most essential jaw crusher parts, explaining their individual roles and the critical materials used in their construction. Understanding these components is fundamental for anyone operating or maintaining these machines.

The Crusher Frame

I consider the crusher frame the backbone of any jaw crusher. It provides the structural integrity for the entire machine. This robust housing supports all other components, ensuring they remain stable during the intense crushing process. For its construction, manufacturers commonly use strong materials. I have seen frames made from:

• Cast steel
• Welded steel
• Cast iron

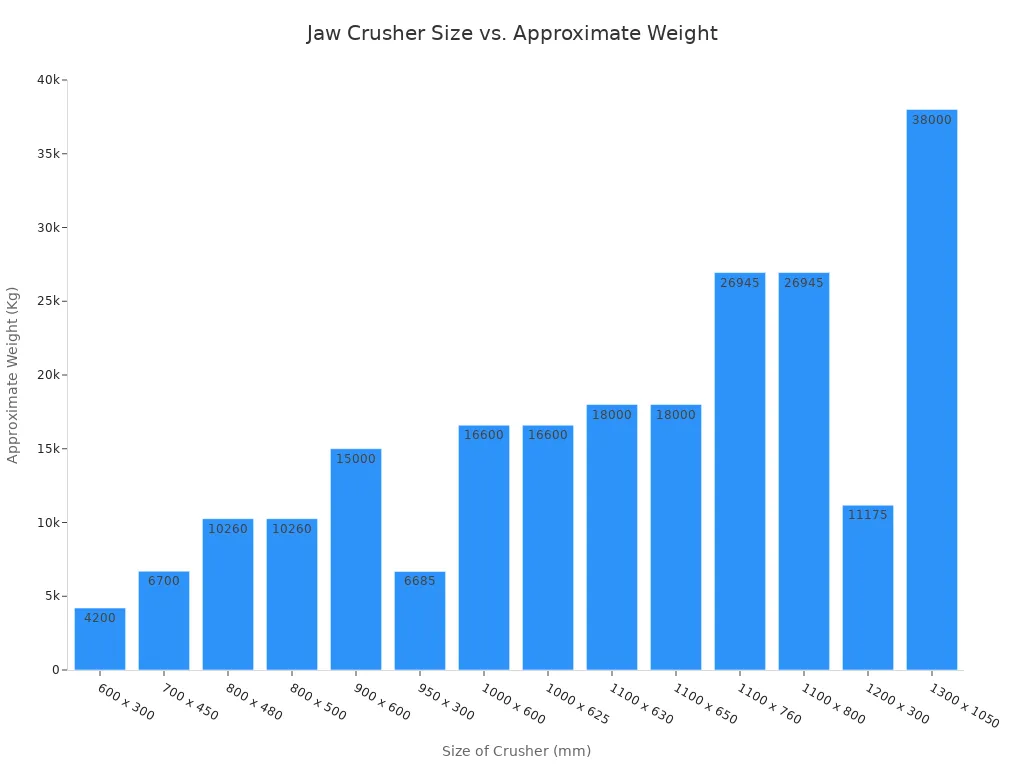

The size and weight of these frames vary significantly based on the crusher's capacity. For instance, a smaller 600 x 300 mm crusher might weigh around 4,200 kg, while a much larger 1300 x 1050 mm unit can tip the scales at 38,000 kg. I find it helpful to visualize this range.

For example, the Cedarapids JW55 Static Jaw Crusher, with its 32" x 55" (820 x 1400 mm) feed opening, weighs 57,860 lbs (26,250 kg). Smaller models like the JW42 weigh 39,100 lbs, and the TJ2440 weighs 26,914 lbs. These figures highlight the substantial engineering involved in these critical jaw crusher parts.

Fixed Jaw Die

Next, I focus on the fixed jaw die. This component is a stationary crushing plate. It forms one side of the crushing chamber. Its primary role is to provide a stable surface against which the movable jaw die presses material. Because of the constant abrasion and impact, the material choice for this part is crucial. I know manufacturers prioritize wear resistance.

Common materials for fixed jaw dies include:

• High Manganese Steel: This is a traditional choice. It offers excellent impact load resistance. It contains over 10% manganese. Lower carbon content leads to greater impact resistance.
  • Mn13Cr2: Suitable for softer materials like coal.
  • Mn18Cr2: Ideal for most stone types, such as granite or basalt. It offers good wear resistance.
  • Mn22Cr2: Best for high-hardness, high-impact materials like iron ore.
• High Chromium Cast Iron: This material provides high wear resistance. However, its toughness is poor. Sometimes, it is used in composite jaw plates.
• Medium Carbon Low Alloy Cast Steel: This option shows good wear resistance. It resists fatigue spalling. It can increase jaw life significantly compared to high-manganese steel.

I have observed that fixed jaw dies typically require replacement after 400-500 operating hours. When processing extremely hard materials like quartzite, this interval can be shorter. In demanding mining environments, these plates might last up to approximately 726 hours.

I also pay attention to common failure modes. Uneven jaw plate wear is a frequent issue. Symptoms include 30-50% faster wear on one side. I recommend rotating plates every 200 operating hours. Checking feed distribution with laser alignment also helps. Another problem is low production output. Throughput drops by more than 20%. Worn jaw dies cause this. I verify this by measuring plate thickness. Replacing them at the 60% wear limit is the solution.

Movable Jaw Die

The movable jaw die works in conjunction with the fixed jaw die. It oscillates, creating the crushing action. This component experiences significant impact and abrasion. Therefore, its material selection is as critical as the fixed jaw die.

I find that movable jaw dies are commonly made from high manganese steel. This material is also known as Hadfield manganese steel. It has a high manganese content. Its austenitic properties make it extremely tough and ductile. It also work-hardens with use. Jaw plates are available in 13%, 18%, and 22% grades of manganese. They also contain 2%-3% chromium. Other materials I have seen include:

• Medium Manganese Steel: This offers a balance between toughness and workability. It is used for crushing materials like concrete.
• Medium-Carbon-Low-Alloy Cast Steel: This combines hardness and flexibility. It is often used in smaller crushers.
• Tungsten Carbide: Occasionally, I see this used for highly abrasive applications.

I have identified several common causes of premature wear in movable jaw dies. These include:

• Quality problems with the movable jaw plate itself.
• Unqualified elbow plate and elbow pad. This leads to a lack of self-breaking protection.
• Displacement of the movable jaw plate. This causes collision with the guard plate.
• Scrapped pull rod spring that is not replaced promptly.
• Discharge port size set below the specified minimum range.
• Incorrect feed inlet position. This can be biased to one end. An overly oblique blanking angle also causes material to strike the top of the movable jaw directly.

Beyond these mechanical issues, I also consider the feed material characteristics. The hardness, abrasiveness, size distribution, and moisture content of the material significantly impact wear rate. Harder, more abrasive, larger, or wetter materials lead to faster wear. Crusher operating conditions also play a role. Settings like closed-side settings and stroke length affect wear. Smaller settings and higher speeds increase wear. Improper feed distribution, overfeeding, or uneven material flow contribute to uneven wear. Finally, maintenance practices are vital. Neglecting regular inspections, proper lubrication, and timely replacement of worn liners can accelerate wear. Effective pre-screening of material helps extend liner life.

Critical Internal Jaw Crusher Parts for Operation

I will now explore the internal components crucial for a jaw crusher's operation. These parts work in concert to deliver the powerful crushing action. Understanding their function and potential issues is vital for maintaining machine efficiency and safety.

Eccentric Shaft

I consider the eccentric shaft the heart of the jaw crusher's mechanical movement. This robust component converts the rotational motion from the motor into the reciprocating, or "swinging," motion of the movable jaw die. It essentially creates the crushing stroke. The shaft's eccentric design means its axis of rotation is offset from its geometric center. This offset causes the movable jaw to move back and forth.

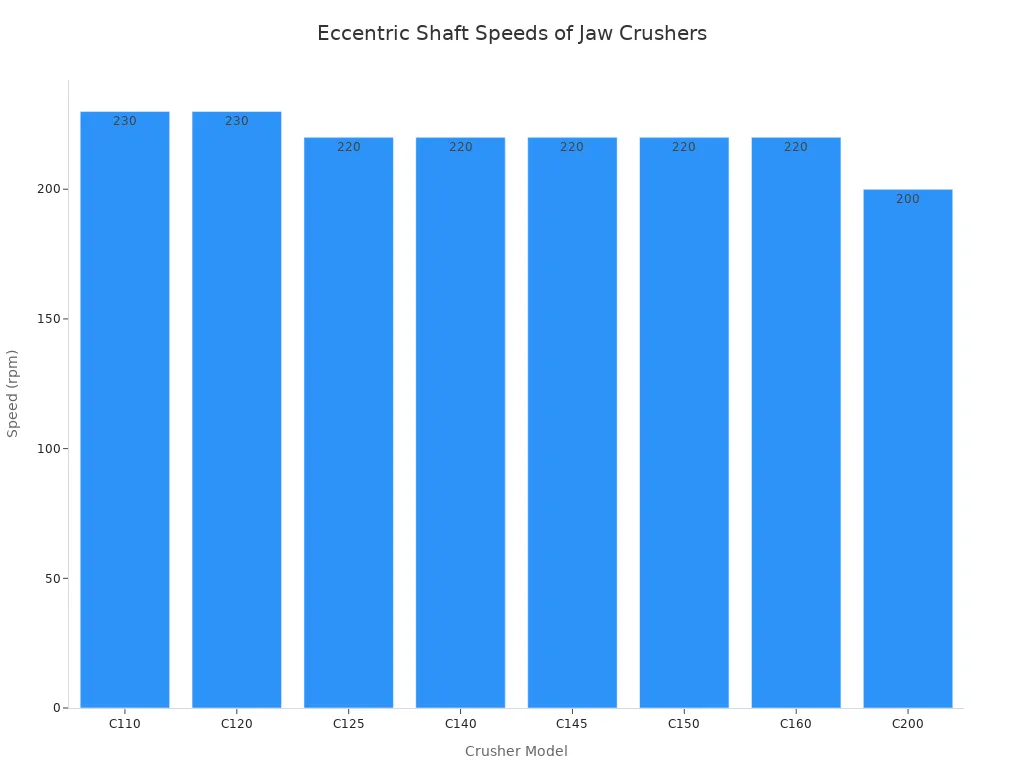

I have observed that eccentric shafts in large-scale jaw crushers operate at specific rotational speeds. These speeds are critical for optimal crushing performance. For example, I see various models operating within a narrow RPM range:

I know that the eccentric shaft endures immense stress and continuous motion. Therefore, it requires robust construction and precise engineering. I frequently encounter several common failure mechanisms for eccentric shafts. These issues can severely impact crusher performance:

• Bearing Wear or Damage: I often find this leads to unusual vibrations and increased power consumption.
• Shaft Misalignment: This causes unusual vibrations and increased power consumption due to added resistance.
• Imbalance due to Uneven Wear: I see this results in unusual vibrations.
• Worn Shaft Surfaces: This affects motion transfer, leading to reduced crushing efficiency.
• Loose Connections: I observe these between the shaft and other components, causing reduced crushing efficiency and knocking sounds.
• Material Deterioration: This occurs due to stress or corrosion, leading to reduced crushing efficiency.
• Increased Friction: I find this from worn bearings, resulting in increased power consumption.
• Shaft Deformation: This affects efficiency and increases power consumption.
• Scoring or Pitting: I see these on shaft surfaces, indicating visible wear or damage.
• Overheating: I identify this by discoloration.
• Cracks or Material Fatigue: I look for these visible signs of damage.
• Lubricant Issues: I check for discolored or contaminated lubricant, insufficient levels, or leaks around seals and bearings. These issues can directly lead to shaft failure.

Regular inspection and proper lubrication are paramount to prevent these failures and ensure the longevity of this critical component.

Toggle Plates

I view toggle plates as essential protective and motion-transferring components within the jaw crusher. They sit between the movable jaw die and the main frame. These plates transmit the crushing force from the eccentric shaft to the movable jaw. They also act as a safety mechanism. If uncrushable material enters the crushing chamber, the toggle plates are designed to break. This prevents more severe damage to expensive components like the frame or eccentric shaft.

I always pay close attention to the condition of toggle plates during maintenance checks. I know that wear or damage to these plates can indicate underlying issues or lead to operational problems. I look for several common signs of wear or damage:

• Abnormal warmth upon touch: I find a warm switch indicates a potential issue with the electrical connection or internal wiring. This often results from a loose connection or faulty switch, leading to increased resistance and heat generation.
• Loose toggle: I know a loose toggle can be a hazard. It may require tightening connections or replacing the switch entirely if the toggle itself is faulty.
• Cracks in the switchplate: I see these occur due to wear and tear or overtightening of screws. They potentially indicate underlying electrical issues.
• Sticking switch: If the light switch is difficult to flip or sticks, I recognize this may indicate a worn-out internal mechanism.
• Flickering lights: I understand this can indicate a faulty connection.
• Buzzing sounds: If I hear buzzing, it might suggest loose wires or internal damage.

While some of these signs relate to electrical switches, the principle of identifying wear and potential failure in mechanical components like toggle plates remains similar. I look for physical signs of stress, deformation, or looseness. Proper installation and regular inspection of toggle plates are crucial for both operational efficiency and safety.

Flywheel

I consider the flywheel a vital component for the smooth and efficient operation of a jaw crusher. It stores kinetic energy generated by the motor. This stored energy helps to maintain a consistent crushing force during the crushing stroke. The flywheel smooths out the power demand, especially when the movable jaw encounters tough material. Without it, the motor would experience significant fluctuations in load, leading to inefficient operation and potential damage.

I have seen flywheels constructed from various robust materials. These materials ensure they can withstand the rotational forces and energy storage demands. Common materials I encounter include:

• Low alloy high strength steel
• ZG35 casting steel with annealing treatment

I always emphasize safety considerations related to flywheel operation. Flywheels store a tremendous amount of energy. This makes them potentially hazardous if not handled correctly. I ensure regular inspection to confirm the flywheel is balanced properly. This is a key safety consideration.

I also know that jaw crushers can move unexpectedly if the flywheel counterweights are not in the correct position. The left-hand flywheel counterweight should be at the 1 o'clock position and the right-hand one at 11 o'clock (when viewed from the feeder). This ensures the eccentric lobe faces down and prevents unexpected pitman movement. If the counterweights are not in the safe position, I ensure the flywheel is fully secured before any work begins. I always remind personnel to stay clear of the crusher and rotating elements until the machine has come to a complete and final stop. Jaw Crusher Parts will continue to rotate slowly during their coast-down time due to the significant stored energy in rotating elements like flywheels.

How Key Jaw Crusher Parts Work Together

I find understanding the synergy between a jaw crusher's components crucial. Each part plays a specific role. Their combined action delivers the powerful crushing force.

Coordinated Crushing Action

I observe a precise sequence of events during crushing. The eccentric shaft sits above the movable jaw. It drives the pitman. This action, in turn, actuates the toggle plates. This mechanical linkage initiates the crushing cycle. The toggle plate plays a crucial role. It transfers motion from the eccentric shaft to the swing jaw. This enables the crushing action. I know maintaining proper tension on the toggle plate is essential. It ensures correct alignment of the jaw plates. This directly contributes to efficient crushing. Insufficient toggle angles can lead to uneven power transmission. This negatively impacts crushing efficiency. Through this coordinated action, jaw crushers generally achieve a reduction ratio. This ratio ranges from 4:1 to 9:1. This means the feed material can become up to nine times smaller in a single pass.

Impact on Performance and Longevity

I recognize the direct link between component interaction and crusher performance. Clean lube oil is the most important factor. It affects the service life of the internal crusher components. Neglecting lubrication system maintenance is a common mistake. Rock dust can infiltrate the lube unit. This contaminates the oil. Dirty oil acts as a lapping compound. It sands down bearing surfaces. This results in worn components and excessive bearing clearances. This leads to unnecessary replacement of very expensive crusher components. I have seen research demonstrate a linear dependency. Jaw plate wear increases energy expenditure. Regular maintenance and inspections are crucial. This includes timely replacement of worn parts. It also includes proper maintenance of the lubrication system. This maintains efficient operation and reduces energy consumption. Extending the lifespan of Jaw Crusher Parts offers significant benefits. These include higher throughput and greater efficiency. It also leads to cost-effectiveness and reduced maintenance requirements.

I believe understanding each jaw crusher part is crucial for optimal performance. Proper maintenance of these components ensures the crusher's longevity and reliability. The frame, jaw dies, eccentric shaft, toggle plates, and flywheel are critical Jaw Crusher Parts for effective crushing. I emphasize their importance for efficient operation.

FAQ

What is the main purpose of a jaw crusher?

I use a jaw crusher to reduce large rocks into smaller sizes. It functions as a primary crushing machine.

How often do I need to replace jaw dies?

I typically replace fixed jaw dies after 400-500 operating hours. Processing harder materials can shorten this interval.

Why is the flywheel a critical component?

I rely on the flywheel to store kinetic energy. It ensures consistent crushing force and smooths the power demand during operation.
