How to Choose the Right Manganese Wear Parts for Your Application?

I find manganese an ideal choice for wear parts due to its exceptional impact strength and superior work-hardening capability. This means it becomes harder with continuous use, absorbing significant energy without fracturing. Selecting the correct Manganese Wear Parts ensures reduced downtime, consistent performance, and significant long-term cost savings for your operations.

Key Takeaways

• Manganese wear parts get harder with use. This helps them last longer and saves money.
• Different manganese types work best for different jobs. Match the part to the material and crusher.
• Check your wear parts often. Feed your crusher correctly. This makes your parts last longer.

Understanding Manganese Wear Parts Compositions

I understand that the composition of manganese wear parts directly dictates their performance in various applications. Different percentages of manganese, along with other alloying elements, create distinct properties. I find it crucial to delve into these compositions to make informed choices.

11-14% Manganese Wear Parts: Characteristics and Ideal Uses

I often refer to 11-14% manganese wear parts as Hadfield steel. They feature an austenitic base microstructure. Carbon and manganese are the two most critical elements in these alloys. Typically, I see an approximate Mn/C ratio of 10, meaning around 12% Mn and 1.2% C. These steels are essentially supersaturated solutions of carbon. I know increasing the carbon content enhances yield strength, but it also reduces ductility. While manufacturers aim to maximize carbon for gouging abrasion and high impact wear, practical limits exist. Exceeding 1.3% carbon can lead to cracking and the prevalence of undissolved grain boundary carbides. Premium grades of manganese steels can push the upper carbon limit beyond 1.3%.

I have observed these parts demonstrate optimal performance in many applications. They are excellent for:

• Transport parts
• Grizzly Bars
• Truck bed bodies
• Shot Blast Equipment Liners
• Abrasive applications
• Non-Magnetic Applications
• Crusher Liners
• Crusher/Shredder Hammers
• Hammer Build-Up
• Crusher Breaker Plates & Bars
• Jaw Crusher Build-Ups
• Security Bars
• Stone or Iron Chutes
• Industrial Track work
• Shot blasting equipment
• Tumbling machines

I also see high manganese steel (11-14% manganese) commonly used in:

• Mining equipment
• Crusher wear parts
• Shot blast equipment

I find the chemical composition for various grades of 11-14% manganese steel typically looks like this:

18% Manganese Wear Parts: Balancing Impact and Abrasion

When I need a balance between impact resistance and abrasion resistance, I often turn to 18% manganese wear parts. These parts are particularly effective in environments where materials are not excessively abrasive but still experience high impact. I find them best suited for:

• Material Abrasiveness: Materials that are not too abrasive but are prone to high impact.
• Crushing Stage: Primary crushing, where material size is large and irregular.
• Material Types: Tough materials like ores and hard rock, due to their excellent resistance to impact and high shock loads.

I see these parts commonly used in:

• Crusher Types: Jaw crushers and cone crushers.
• Material Characteristics: Large feed sizes, compressive forces, and repeated impacts.

I also note their standard use on all jaw crushers. They are ideal for the majority of quarry and recycling applications.

22-24% Manganese Wear Parts: For Extreme Hardness

For applications demanding extreme hardness and superior lifespan in severe abrasion, I recommend 22-24% manganese wear parts. This higher manganese content significantly boosts the material's work-hardening capabilities, making it incredibly resilient. I have seen manganese steel, particularly with a hardness of 22-24 HRC, widely used in crusher liners for mining operations. It offers excellent wear resistance and impact strength. I find this material can extend the lifespan of liners by approximately 30% compared to basic materials, especially when dealing with tough, abrasive rock types. Companies like Chengdu Zhixin Refractory Technology Co., Ltd. specialize in producing high manganese steel machinery to address the demanding challenges within the mining sector.

I observe the typical performance characteristics for this grade as follows:

Key Factors for Selecting Manganese Wear Parts

I know choosing the right wear parts is a complex decision. It involves careful consideration of several key factors. I always evaluate the material being crushed, the specific crusher type, and my production goals. These elements guide me toward the most effective and economical solution.

Material Being Crushed: Hardness and Abrasiveness

I find the characteristics of the material you crush are paramount in selecting wear parts. Material hardness and abrasiveness directly impact wear rates. For example, limestone, with its calcite composition (Mohs 3), shows vulnerability to silica abrasion. Its softer, porous varieties experience faster wear and accelerated micro-abrasion. Basalt, however, offers excellent abrasion resistance. Its dense crystalline structure (2.9–3.1 g/cm³) and Mohs hardness of 5–6 contribute to superior mechanical wear resistance. I see minimal wear even after long-term, extreme exposure with basalt.

I often refer to this table when considering material properties:

I understand that harder, more abrasive materials demand wear parts with superior work-hardening capabilities and robust compositions.

Crusher Type and Operational Demands

I recognize that each crusher type operates differently, creating unique wear patterns and demands on its components. For instance, a single-toggle jaw crusher uses a 'wiping action' during closing strokes. The swing jaw or the material slips. This action inevitably leads to accelerated wear of the jaw plates. This is especially true when processing highly abrasive or very hard, tough rock. I do not consider this type of jaw crusher economical for such materials. It requires increased wear part replacements.

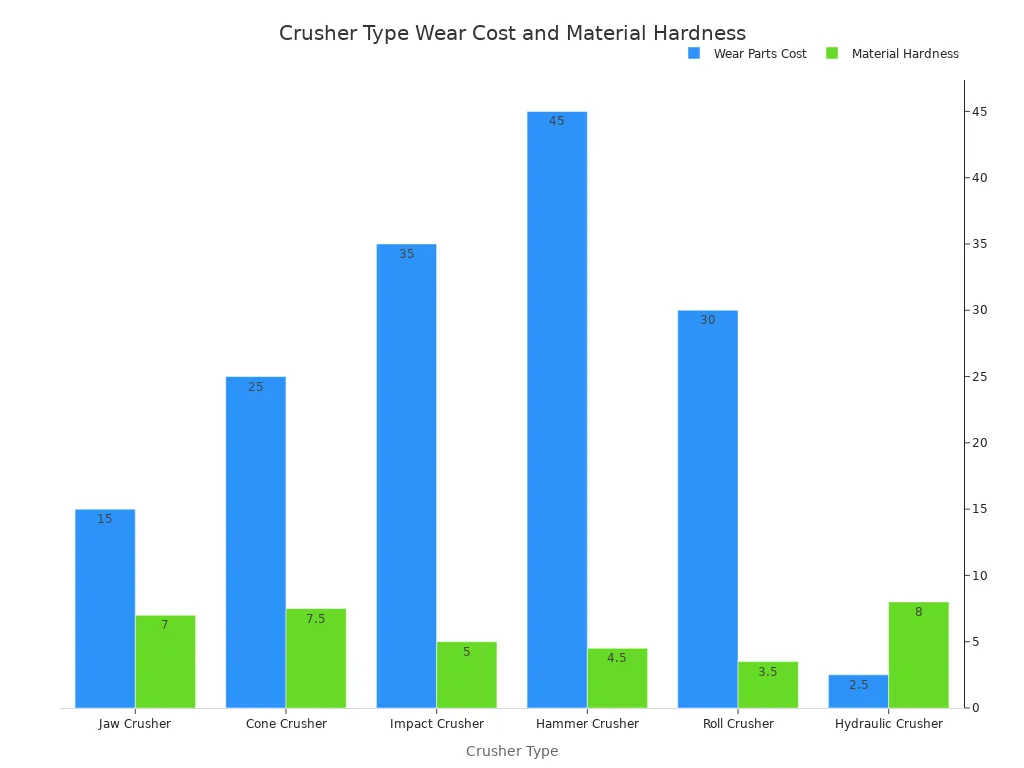

I find this table helpful for understanding the wear characteristics across different crusher types:

I also consider the operational demands of the crusher. Feed rate and crushing pressure significantly influence wear part selection. Manganese steel is a popular choice for jaw plates. It offers high wear resistance, work-hardening properties, and durability. When I select jaw plates, the hardness and abrasiveness of the input material are crucial considerations. This ensures the longevity of the plates and the efficiency of the crusher. For cone crushers, the mantle and concave are key components. Selecting the appropriate profile is vital for achieving the desired product size and shape. It also maximizes wear life. I monitor liner wear closely. It directly impacts the crusher's performance and efficiency. Regular measurement of liner thickness and adjustment of the closed side setting helps maintain consistent product quality. It also extends the life of wear parts.

Desired Output and Production Goals

I always align my wear part choices with my desired output and production goals. Do I need a specific product size or shape? Am I aiming for maximum throughput? These questions guide my selection. For example, a finer product often requires different wear part profiles than a coarser one. I might choose a specific mantle or concave profile in a cone crusher to achieve a cubical product. My production targets also influence the wear part material. I select a more durable composition if I need continuous, high-volume output. This minimizes downtime for replacements. Ultimately, I aim for a balance. I want to achieve my production goals while optimizing the lifespan of my Manganese Wear Parts.

Matching Manganese Wear Parts to Specific Applications

I find matching Manganese Wear Parts to specific applications crucial for optimal performance. Each crusher type presents unique challenges and demands specific wear part characteristics.

Manganese Wear Parts for Jaw Crushers

For jaw crushers, I observe distinct wear patterns. Worn jaw plates, for example, make the bite shallower. This causes material to slip instead of breaking. It wastes energy and creates uneven product sizes. I mitigate this by regularly inspecting plates, tracking wear, and replacing them before ridges flatten. Loose or misaligned components also cause issues. Bolts, toggle plates, and belts can loosen from vibration. This leads to uneven force distribution and reduced throughput. I perform weekly alignment and tension checks. I tighten bolts and replace worn toggle plates early.

I also notice premature wear of toggle plate seating surfaces. A loose tension spring often causes this. I tighten the tension spring to fix this problem.

Manganese Wear Parts for Cone Crushers

When I consider cone crushers, I know manganese steel, typically with 12-14% manganese, is the most common material for liners. I find it highly effective for secondary and tertiary crushing stages. It offers excellent wear resistance, high impact strength, and abrasion resistance. This makes it suitable for hard rock and abrasive materials. Concave liners, the stationary liners forming the upper part of the crushing chamber, have specific profiles. These profiles optimize the crushing action. I see a wide array of liners available. They accommodate both coarse and fine feed materials. The feed material's characteristics are the most critical factor for selection.

The geometry of the crushing chamber dictates material movement. Optimizing it improves the overall reduction ratio and crusher efficiency. Custom-engineered liners and optimized chamber profiles can increase throughput capacity and improve reduction ratios. Customization options for mantle and concave include shape adjustments for desired product size and thickness variations for extended service life.

I also know poor feeding conditions, like segregated or off-centered feed, lead to poor particle shape and reduced performance. Choke feeding, which ensures a full chamber, minimizes air pockets. It reduces the creation of flat, elongated particles. This improves particle shape. I also consider different profiles:

• Standard Profiles: Balance throughput and product size control.
• Coarse Profiles: Handle larger feed sizes and maximize throughput.
• Fine Profiles: Produce finer, more uniform products.
• Non-Choking Profiles: Prevent material buildup, useful for sticky or wet materials.

Manganese Wear Parts for Impact Crushers

For impact crushers, I prioritize Manganese Wear Parts that can withstand extreme, high-velocity impacts. These crushers rely on blow bars or hammers to shatter material. This creates significant shock loads. I select materials with superior toughness and work-hardening properties. This ensures durability and consistent performance.

I always prioritize performance, lifespan, and cost-effectiveness. Upgraded Manganese Wear Parts offer exceptional toughness and wear resistance, significantly extending service life and reducing operating costs. Poor quality parts lead to increased downtime and maintenance. I find expert consultation invaluable for making optimal selections.

FAQ

How often should I inspect my manganese wear parts?

I recommend regular inspections. I check them weekly. This helps me catch wear early. It prevents unexpected downtime.

Can I mix different manganese compositions in one crusher?

I advise against mixing compositions. It can lead to uneven wear. This reduces overall efficiency. I always use consistent materials.

What is the most common reason for premature wear in manganese parts?

I find improper material feed is a common cause. Segregation or off-center feeding creates uneven stress. This accelerates wear.
